Manual SMT Production Line Solder Paste Stencil Printer , PCB Assembly Line Batch production
Best Combination SMT Production Line :
Solder paste Printer 4432 + 4 heads 30 feeders CHMT530P4 Pnp Machine + T960 LED Reflow Oven
Please find working video on our Youtube channel:
(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA
Small SMT Production line:
1. Solder paste printer:
| Technical Parameters |
| Type: | Manual |
| G.W: | 13kg |
| Maximum print Area: | 320*440mm |
| Packing size: | L 71cm*W 52cm*H 14cm |
2.CHMT530P4
| Parameters | |
| Model | CHMT530P4 |
| XYZ Axis travel | 650mm(X)×760mm(Y)×15mm(Z) |
| PCB max size | 450mm(L)×330mm(W) |
| Support components | 0201-0402-5050, SOP, QFN,BGA etc. |
| Mounting speed | - Without vision:8000cph
- With Vision:5500cph
|
| Precision | ±0.015mm |
| Placement head | 4 heads |
| Feeding system | l Support max 30pcs 8mm Pneumatic feeder (other options: 12,16,24mm,vibration feeder) - 11pcs general IC stack
- Support IC tray
|
| Vision detection | Double camera (up & down) |
| Motor control | - XY Axis stepper motor with encoder closed-loop control
- Flexible S deceleration
- Z Axis reset detection
|
| Components leakage detection | Vacuum and visual detection |
| Main board | High-reliability industry motherboard |
| Touch Screen | 7 inches industry screen |
| Operation system | Embedded Linux system |
| External air source | 0.5MPa |
| Power supply | AC220V 50Hz / AC110V 60Hz |
| Demension | 1050mm(L)×780mm(W)×500mm(H) |
| Compantible software | Altium designer, Protell99SE, PADS, Kicad, Eagle, Cadint, Cadence Orcad, Cadence Allegro, PROTEUS…etc |
| Net weight | 125Kg |

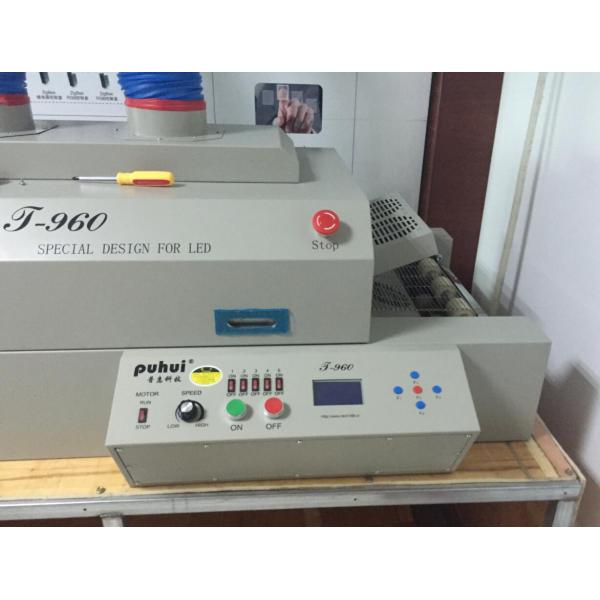

3.Reflow Oven T960:
| Model | T-960 |
| The heating zone quantity | upper3/down2 |
| The length of the heating zone | 960mm |
| The heating type | intelligent level sirocco and rapid infrared heating |
| The cooling zone quantity | 1 |
| Maximum width of PCB board | 300MM |
| The operation direction | left to right |
| Delivery options | Net transmission+chain transmission |
| The speed of conveyer belt | 0-1600mm/min |
| The power supply | Three phase 5 line 380V 50/60Hz |
| Peak power | 4.5KW |
| Heating up time | Around 15mins |
| Temperature control range | Room temperature~300 |
| Temperature control mode | PID closed-loop control |
| Temperature control accuracy | ±3 |
| PCB temperature distribution deviation | ±2 |
| Overall dimensions | 1450×630×470 |
1. Stencil printer Middle size 320*440mm
2. CHMT530P4 Pick and place machine with AUTO Yamaha pneumatic feeders with Vision System:
3. LED Reflow oven T960:
Small SMT production line:
Solder printer ------ Pick and Place machine ----- Reflow oven
Q1: What is the lead time of your products? (How long do you need to prepare my goods?)
A: 2-3 days for 1-3 unit machine. 5-15 days for mass production orders (based on different quantities).
Q2: How will you deliver my goods to me?
A: We usually ship by international expresses such as DHL,UPS, FedEx, TNT to enable our customers get their
goods rapidly. For bigger quantity, ship by air or by sea.
Q3: How long do I need to wait before my goods arrive?
A: 3-7 days for international express. 5-8 days for air transportation. 20-40 days for sea transportation.
Q4: What is your product quality?
A: Our raw materials are purchased from qualified suppliers, the best qaulity in China. And our engineers all have over 20 years expereinces in Machinery, ensure good quality and functions. Now CharmHigh's Quality and feedback is better than other brands in China.
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply. (Artificial damage except)
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale
service.
If your machine or machine part is defect on transportation, please take photos and send to our email, we will make placement of damaged parts to you soon.
Each machine 100% test well before ship out.
Tech support:
Kimi Mob: 0086 135 106 75756
Skype: kimiliu89 .
E-mail: kimi@charmhigh-tech.com
(CHARMHIGH) YOUTUBE CHANNEL:
www.youtube.com/channel/UCKRczL5Hywx59M_2SWGJOsA
Standard package service:
The package of our P&Ps is standard export wooden package to avoid the damage during the transportation.
Transportation service:
For package below 200 kg , you can use DHL, Fedex or other express company, For large quantities, you could use sea delivery.
